Model:
Battery 19” 3U 150Ah Iron Based

High energy density:

150Ah

Get a quote Request a datasheet

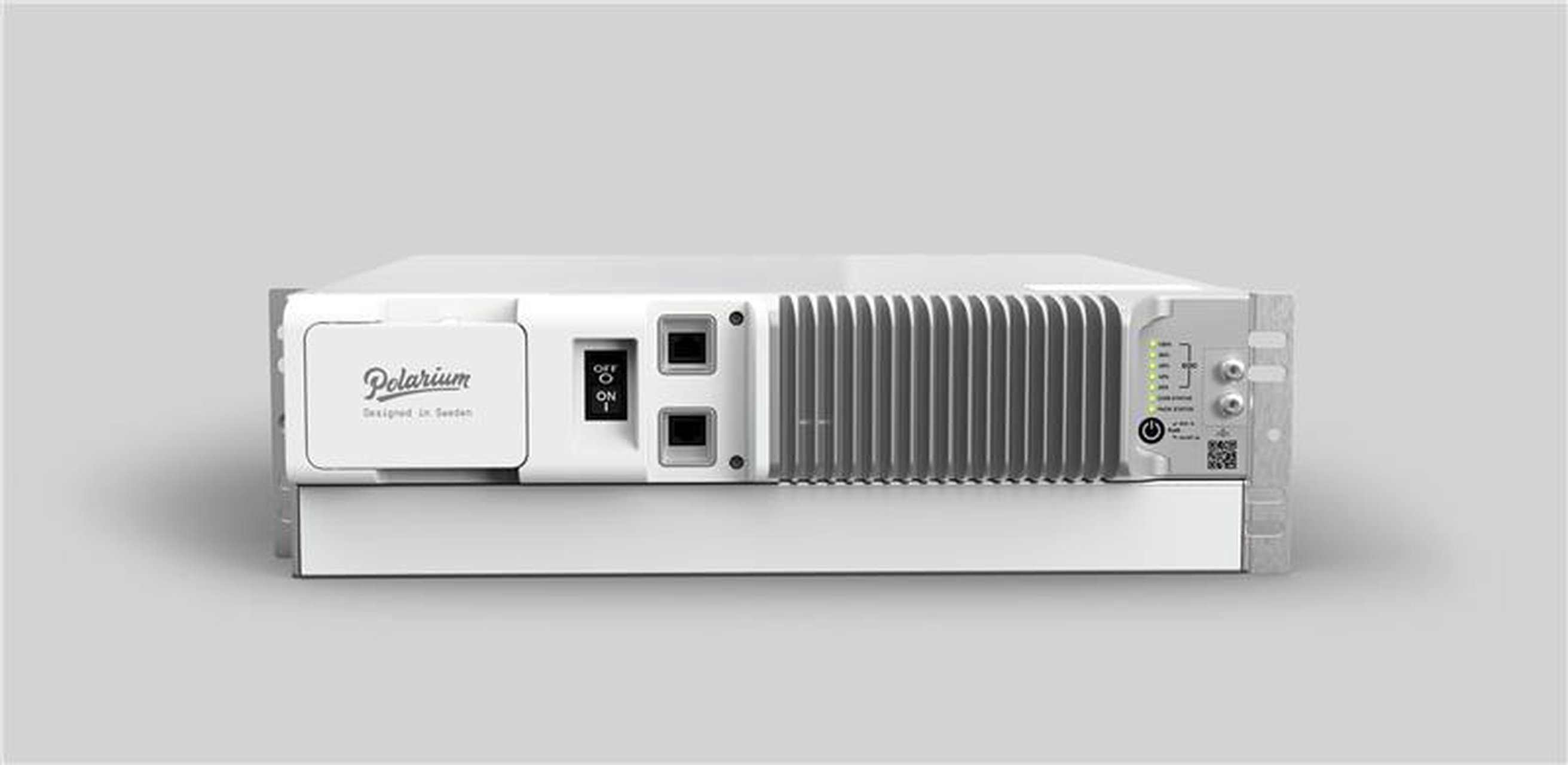

Polarium 19” 3U 150Ah LFP Battery is purpose-built for optimum TCO (Total Cost of Ownership) for telecom applications providing reliability and cost-efficiency, designed to keep your network running, no matter what.

Compact design: W442 D550 H132mm
Lithium Chemistry: Iron Based
Rated Voltage: 48 V
IP Class: IP20
Circuit breaker: 100 A, BMS controlled, single pole
Weight: 57 Kg

Even higher energy density enabled by the 3U height in 19” racks.
Nominal 150 Ah / -48 V ideal to match 1h backup time in Telecom systems at optimum TCO
Max charge 100 A (charge control will limit without turning off) and max discharge 100 A. Virtually unlimited parallel operation.
Safe every step of the way – from transportation to implementation and maintenance
IEC 62368 certification in addition to the standard IEC 62619 certification providing a broader certification scope than most.
Vertically aligned large M8 terminals enabling the lowest losses and quickest stack installation on the market using Polarium busbars.
