Model:

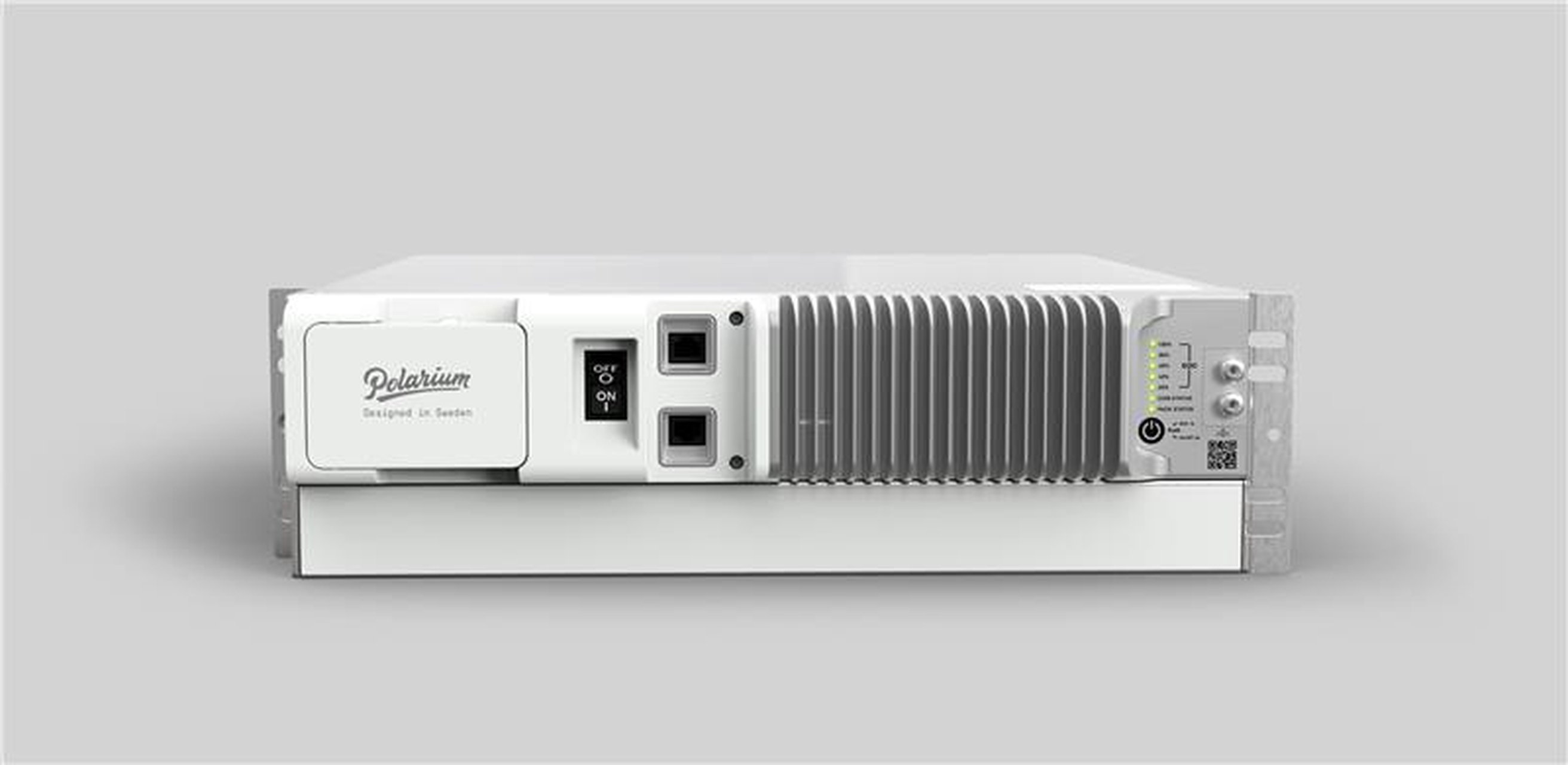

Battery 19”3U 100Ah Iron Based

High energy density battery.:

100Ah

Get a quote Request a datasheet

High energy density battery.

Compact design: W440 461 H132mm
Lithium Chemistry: Iron Based
Rated Voltage: 48 V
IP Class: IP20
Circuit breaker: 100 A, BMS controlled, single pole
Weight: 38.3 Kg

Exceptional cycle life, 8000 cycles, provides market leading TCO (Total cost of ownership)

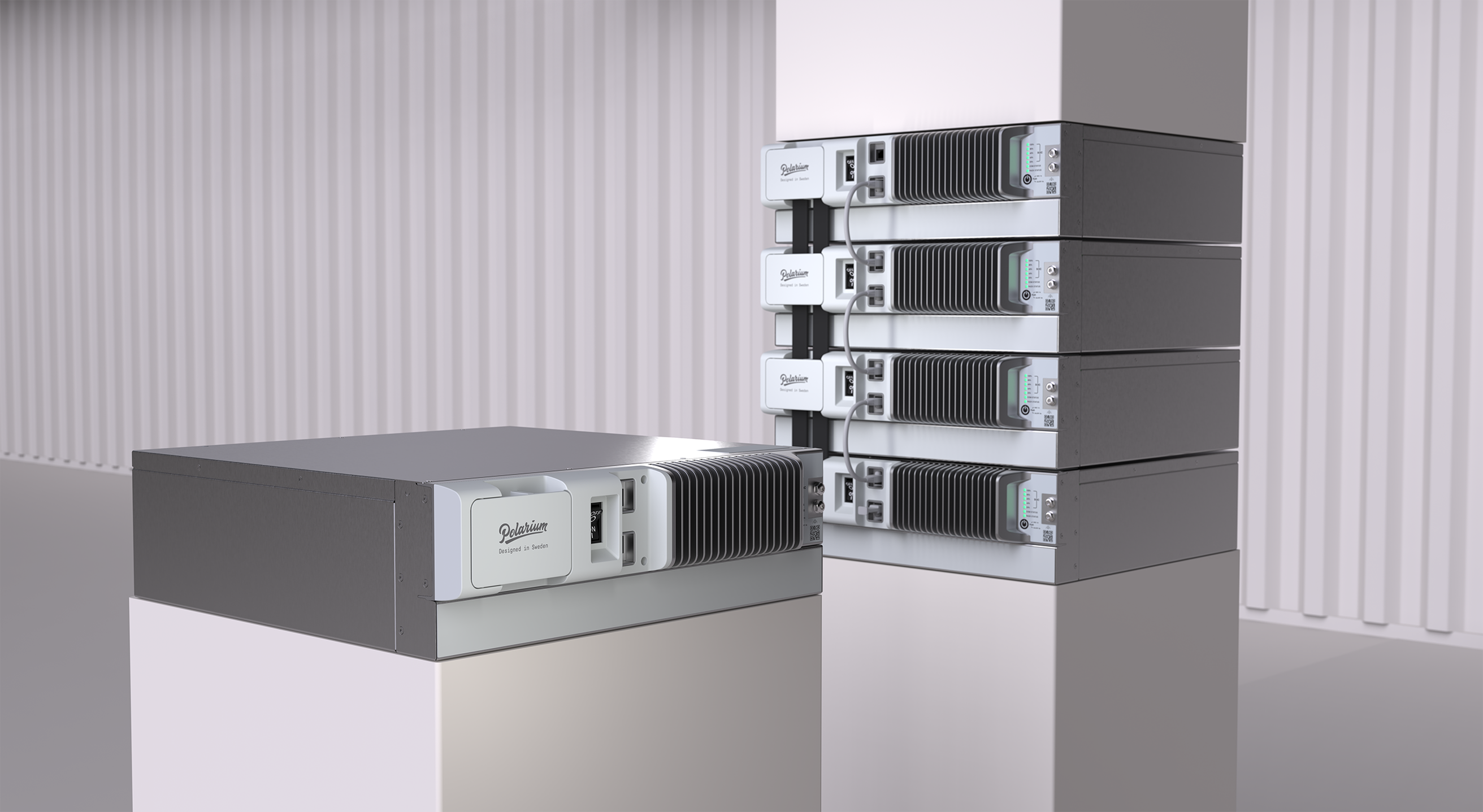

Even higher energy density enabled by the 3U height in 19” racks
Max charge 100 A (charge control will limit without turning off) and max discharge 100 A. Virtually unlimited parallel operation.
Safe every step of the way – from transportation to implementation and maintenance
IEC 62368 certification in addition to the standard IEC 62619 certification providing a broader certification scope than most.
The temperature range for charging is extended to include down to -5 degrees C which is a unique and valued feature enabling more cost effective deployment in colder regions.
Vertically aligned large M8 terminals enabling the lowest losses and quickest stack installation on the market using Polarium busbars.
Nominal 100 Ah / -48 V
